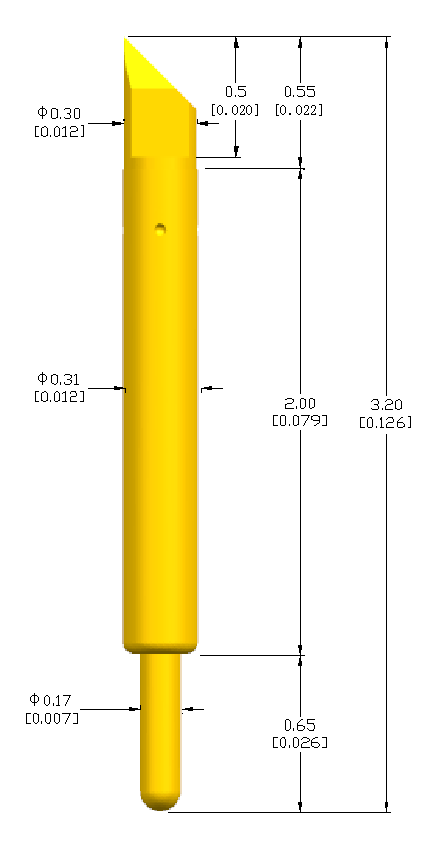

Probe Spec:
Mininum Center:
N/A
FullStroke:
0.60mm
Recommended Stroke:
0.5mm
Spring Force:
30g±20%@0.50mm
Current:
1A
Bandwidth:
N/A
Induction:
N/A
Spring Life:
200k
Diameter Tolerance:
±0.01mm
Length Tolerance:
±0.15mm
Line Tolerance:
0.06
Material Spec:
up Gin:
BeCu+Au plated
Bottom Plunger:
Becu+Au plated
Spring:
SUS(604)+Au plated
Barrel:
Phosphor Copper+Au plated
