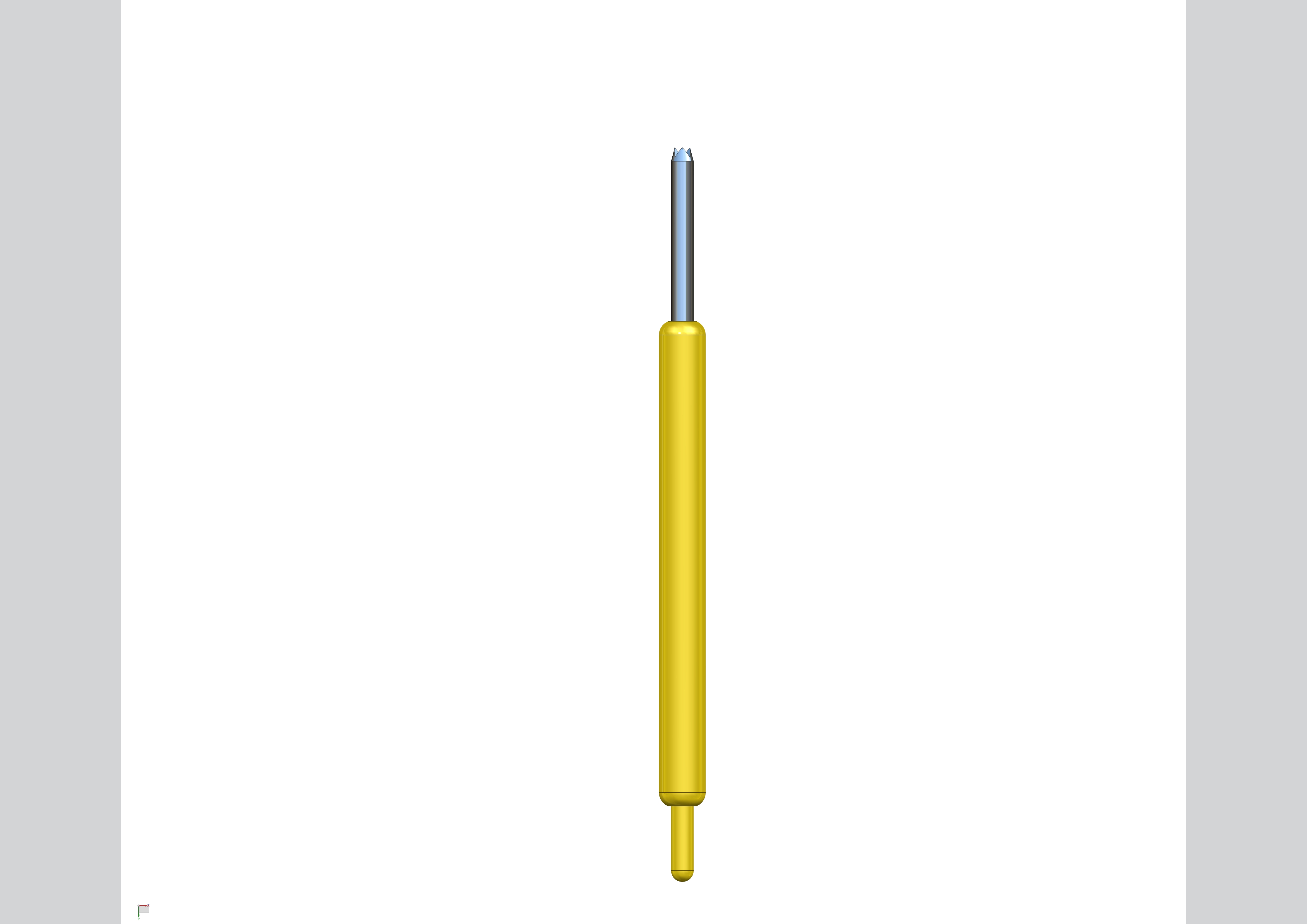

SP031485H010C015035-Pd-S
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools

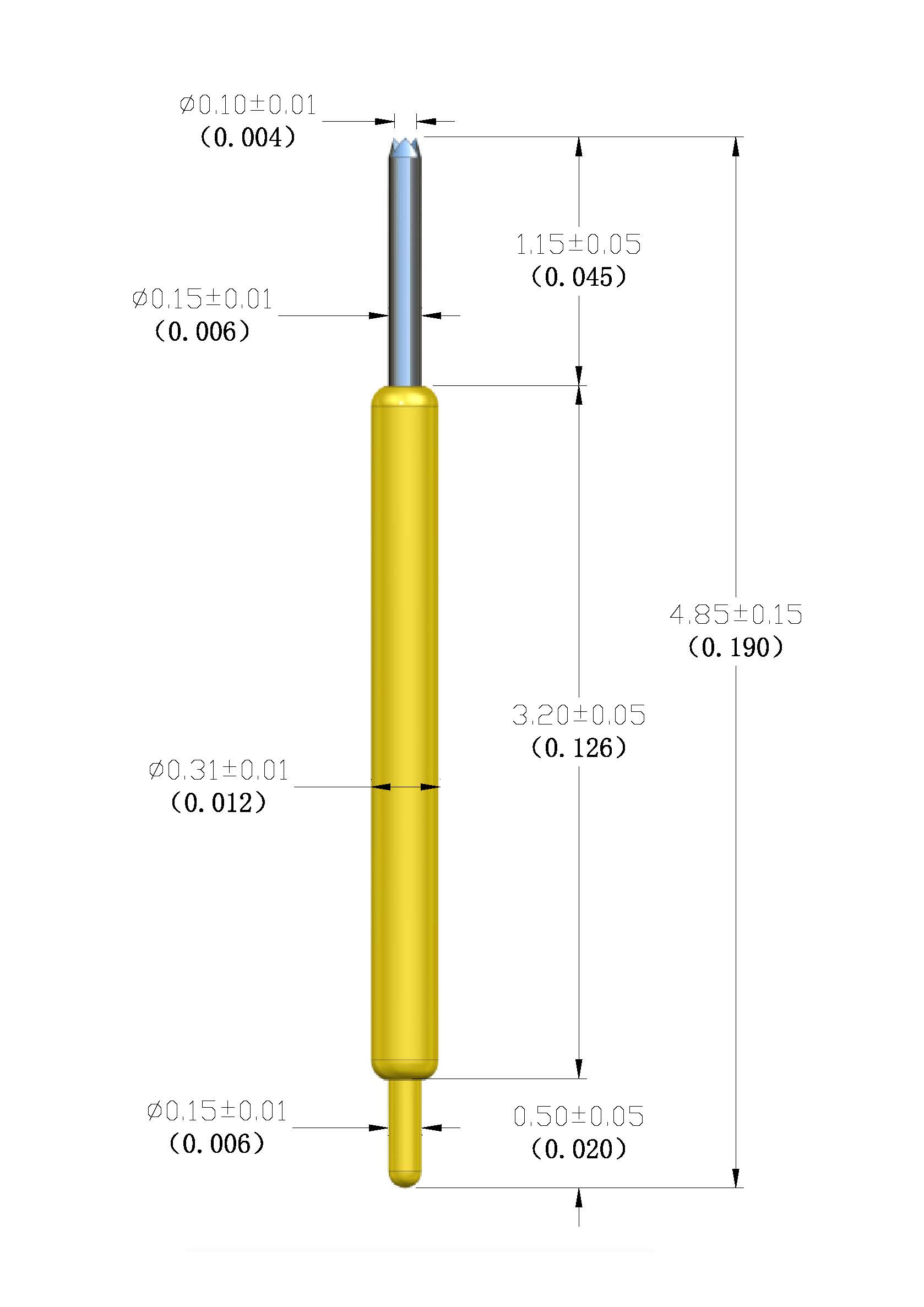

Probe Spec:
Mininum Center:
0.40
FullStroke:
0.75
Recommended Stroke:
0.55
Spring Force:
35G±20%@0.55mm
Impedance:
120mΩ
Current:
2.0A
Temperature:
-50℃~170℃
Spring Life:
100K
Material Spec:
up Gin:
Pd
Bottom Plunger:
BeCU -Au Plated
Spring:
Stainless steel -Au Plated
Barrel:
Phosphor Copper-Au plated
