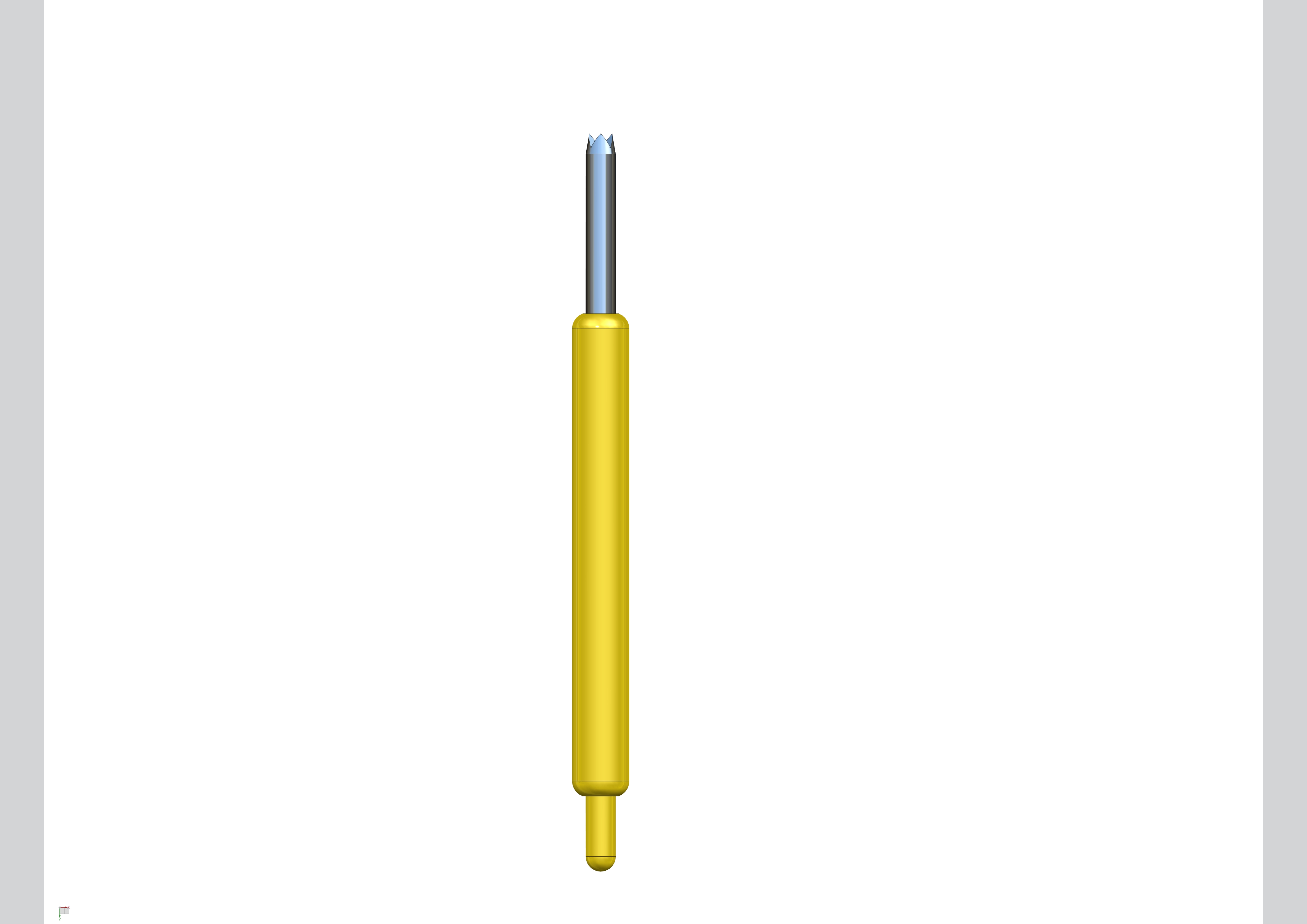

SP038490H015C020035-Pd-S
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.60
FullStroke:
0.95
Recommended Stroke:
0.75
Spring Force:
35G±20%@0.75mm
Impedance:
100mΩ(AVG)
Current:
2.0A
Temperature:
-50°C~150°C
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
Pd Alloy
Bottom Plunger:
BeCu-Au plated
Spring:
Stainless Steel-Au plated
Barrel:
Phosphor Copper-Au Plated
.
