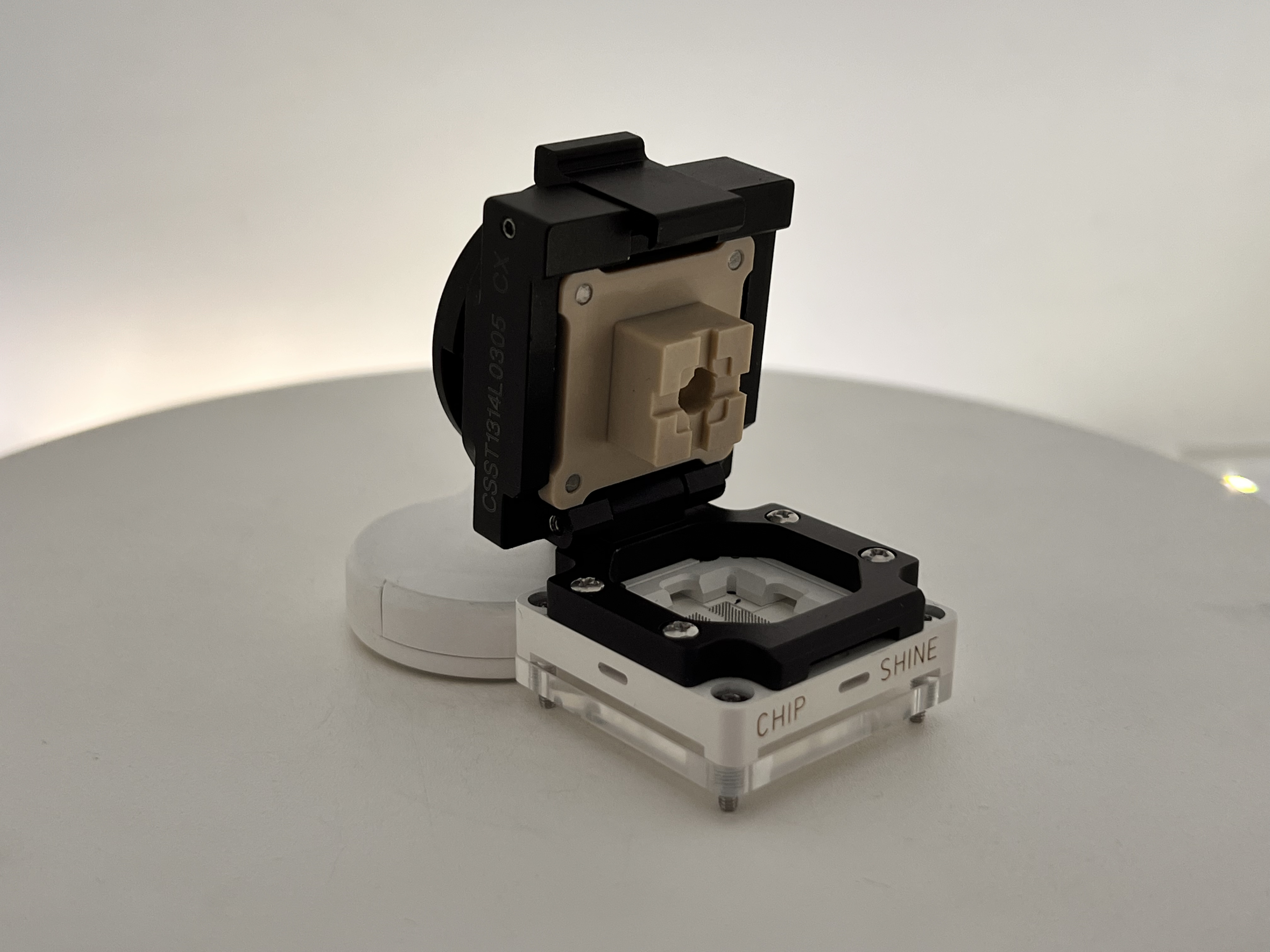

Hast试验测试系统Hast试验测试系统
库存:10000
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Probe Spec:
Material Spec:
规格参数：
Pitch： 0.4mm
电压： 100V d.c
电流： 2A
介质耐电压：1000V a.c
接触电阻： 60mΩ（AVG）
绝缘电阻： ≥5000MΩ
寿命： 5000小时
工作温度： -55~150℃
塑料件材质：陶瓷PEEK
探针材质： Pd Alloy、BeCu
特点：
1.旋钮压盖式设计供手工或自动载卸芯片
2.可凭视觉准确地装载芯片
3.可靠性高，探针预先加载
4.测试温度范围-55~150℃
5.盖板上有窗口，提供较大气流
