Current Position:
Home
>
Product Center
2D
3D
Loading…

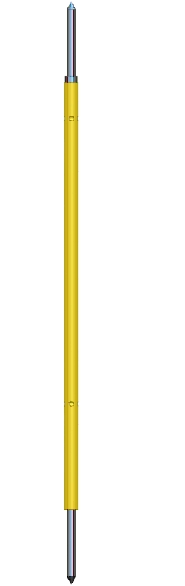

ST011470FF007007-Pd
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.17
FullStroke:
0.60
Recommended Stroke:
0.40
Spring Force:
7g±20%@0.40mm
Impedance:
Max.500mΩ
Current:
0.3A
Temperature:
-45°C~125°C
Spring Life:
100K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.12
Material Spec:
Bottom Plunger:
.
nothing
