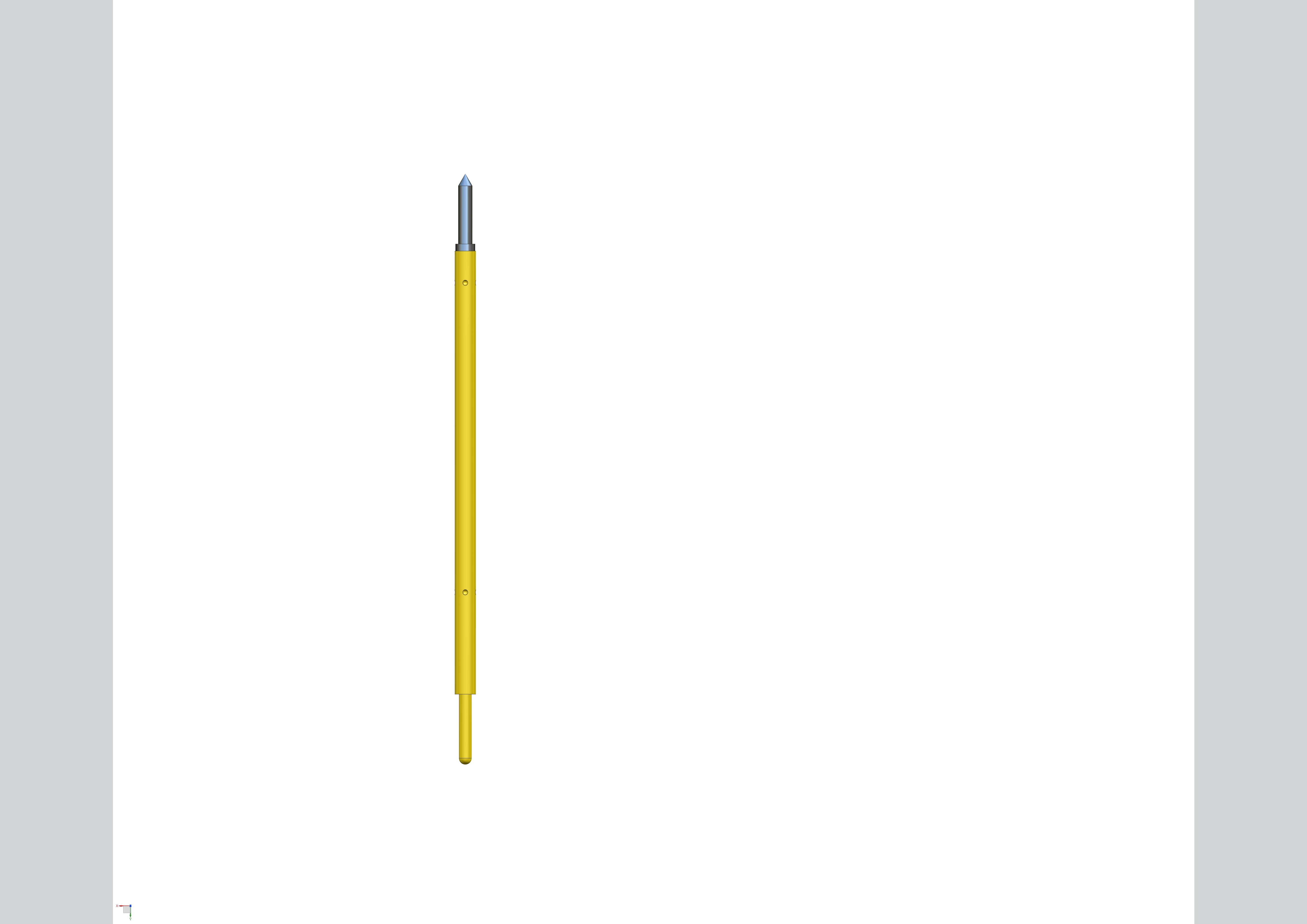

ST015420F010C009013-Pd
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
  • Product description
  • Download
  • Receptacle&Tools
Probe Spec:
Mininum Center: 0.25
FullStroke: 0.50
Recommended Stroke: 0.30
Spring Force: 13G±20%@0.70mm
Impedance: 200mΩ(AVG)
Current: 0.5A
Bandwidth: 27.2Ghz@-1dB
Induction: 1.71nH
Temperature: -45°C~125°C
Spring Life: 100K
Diameter Tolerance: ±0.01
Length Tolerance: ±0.15
Material Spec:
up Gin: Pd Alloy
Bottom Plunger: Becu-Au Plated
Spring: Music wire-Au plated
Barrel: Phosphor Copper-Au plated
.
