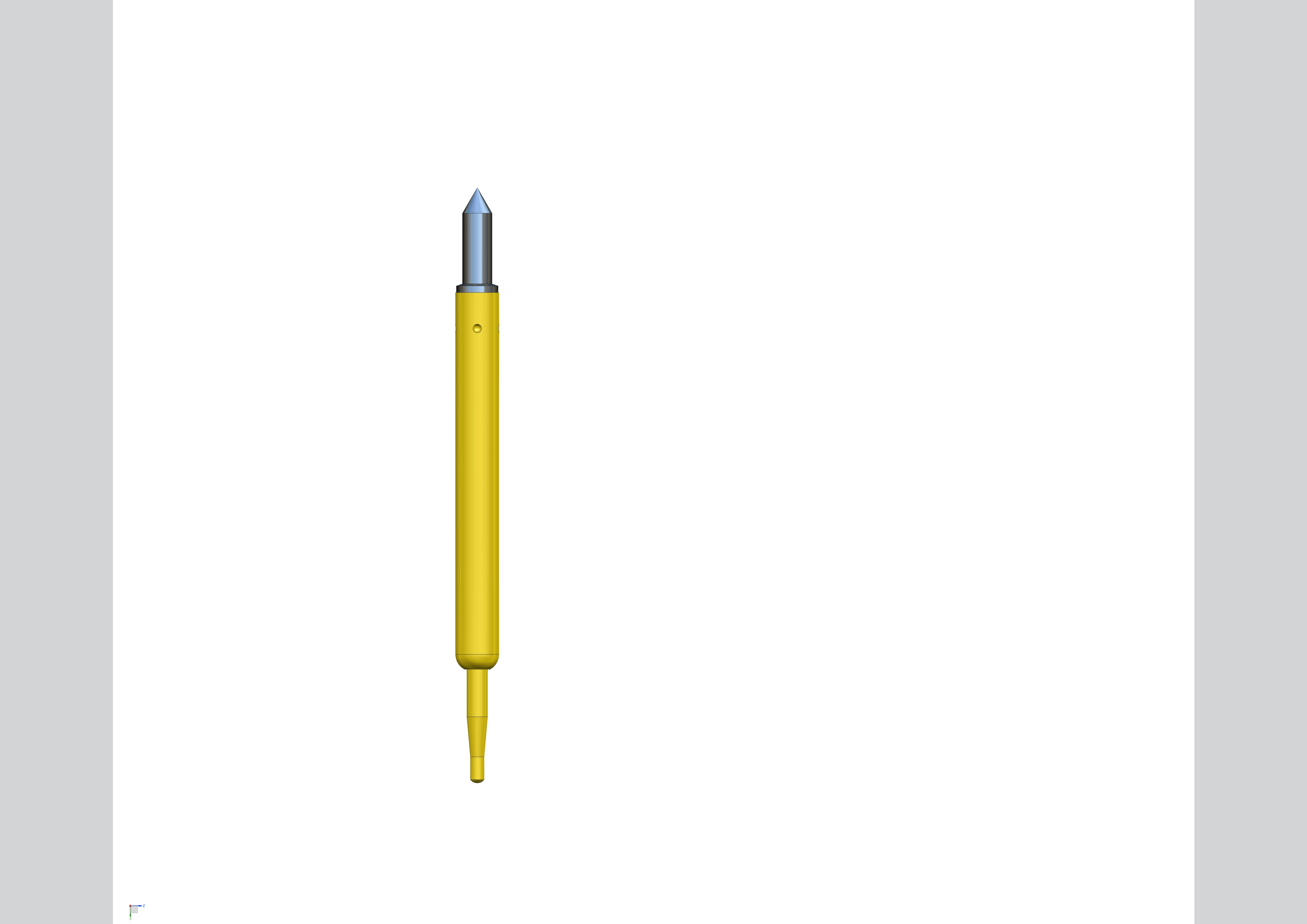

Probe Spec:
Mininum Center:
0.35
FullStroke:
0.50
Recommended Stroke:
0.40
Spring Force:
25G±20%@0.40mm
Impedance:
80mΩ(AVG)
Current:
2.0A
Bandwidth:
20GHz@-1dB
Induction:
0.61nH
Temperature:
-45°C~125°C
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
Pd Alloy
Bottom Plunger:
BeCU-Au plated
Spring:
Music Wire-Au plated
Barrel:
Phosphor Copper-Au plated
