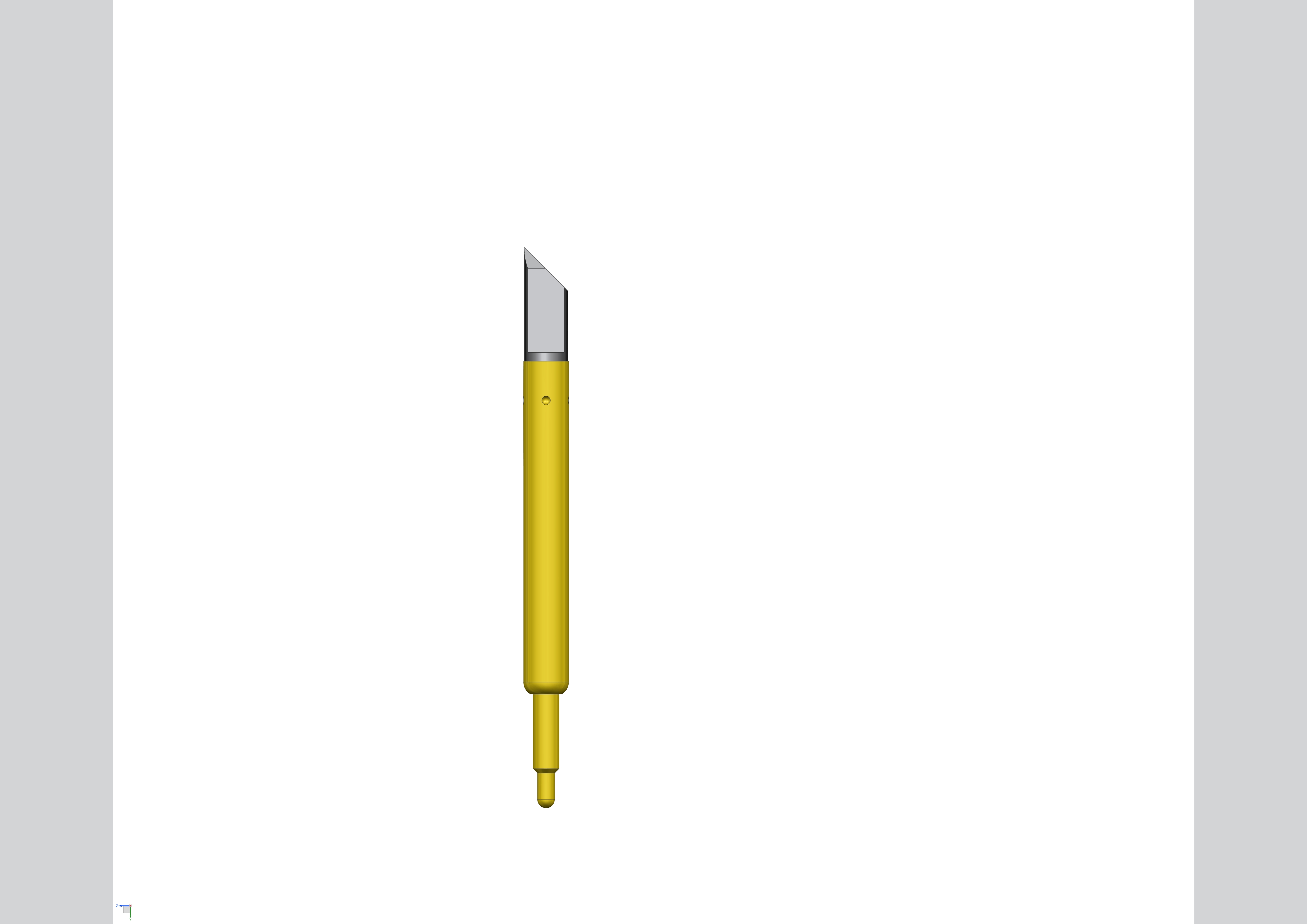

Probe Spec:
Mininum Center:
0.35
FullStroke:
0.60
Recommended Stroke:
0.50
Spring Force:
25G±20%@0.50mm
Impedance:
AVG.100mΩ
Current:
3.0A Continuous/20min
Bandwidth:
20Ghz@-1dB
Induction:
1.00nH
Temperature:
-50℃~170℃
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
SK4-Au plated
Bottom Plunger:
BeCU-Au plated
Spring:
Stainless steel-Au Plated
Barrel:
Phosphor Copper-Au plated
