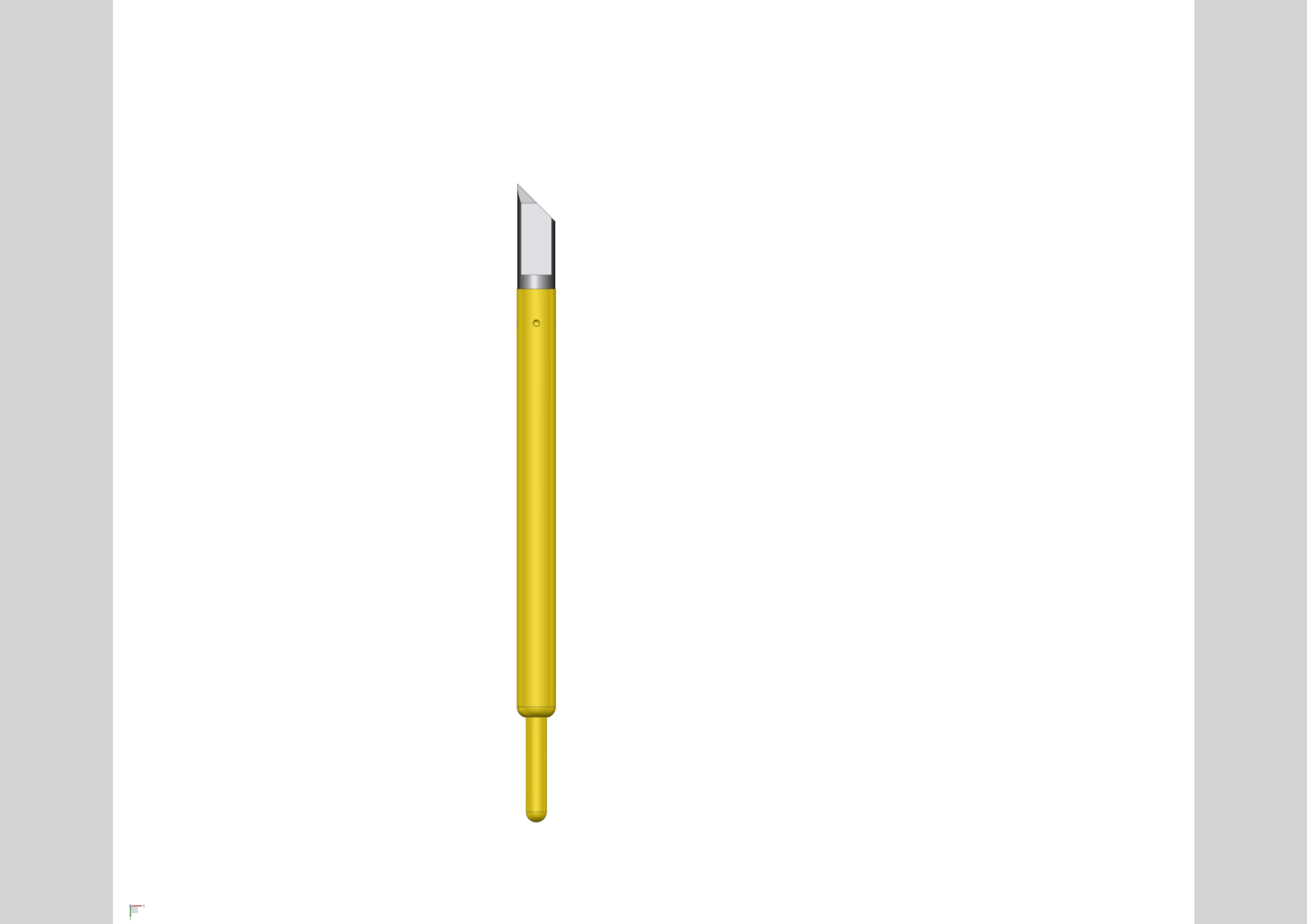

ST028455K016C015028-SK4
库存:10000
Please select a needle
Please select spring
Product description
Download
Receptacle&Tools
Probe Spec:
FullStroke:
0.55
Recommended Stroke:
0.40
Spring Force:
28G±20%@0.40mm
Impedance:
AVG.80mΩ
Current:
1A
Spring Life:
300K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
SK4+Au plated
Bottom Plunger:
BeCU+Au plated
Spring:
SUS+Au plated
Barrel:
Phosphor Copper+Au plated
.
