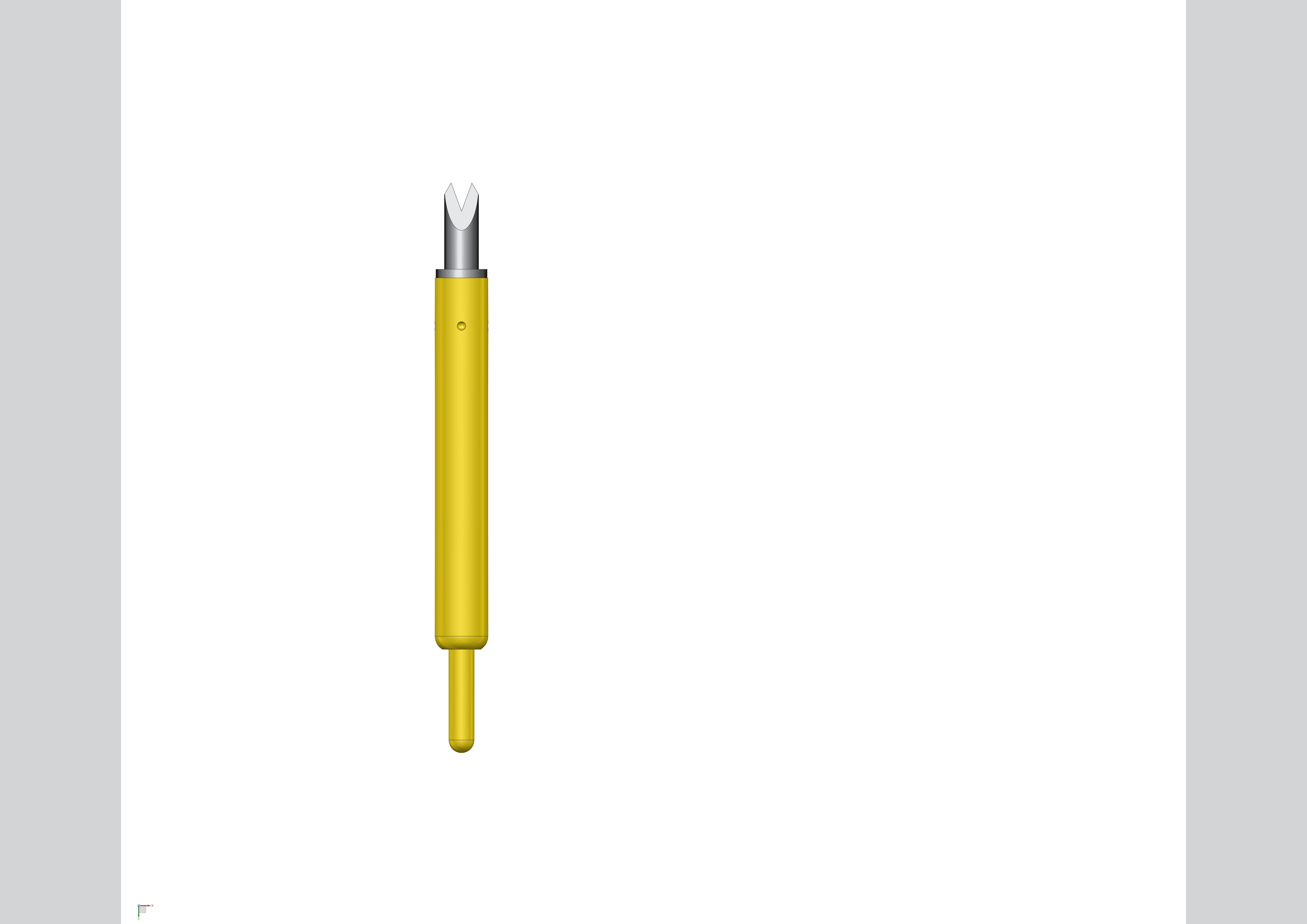

ST031330V012C015040-SK4
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.40
FullStroke:
0.55
Recommended Stroke:
0.40
Spring Force:
40G±20%@0.40mm
Impedance:
60mΩ(AVG)
Current:
2.5A Continuous
Bandwidth:
20.43Ghz@-1dB
Induction:
0.45nH
Temperature:
-45℃~125℃
Spring Life:
300K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
SK4-Au plated
Bottom Plunger:
BeCU-Au plated
Spring:
Music Wire-Au plated
Barrel:
Phosphor Copper-Au plated
.
