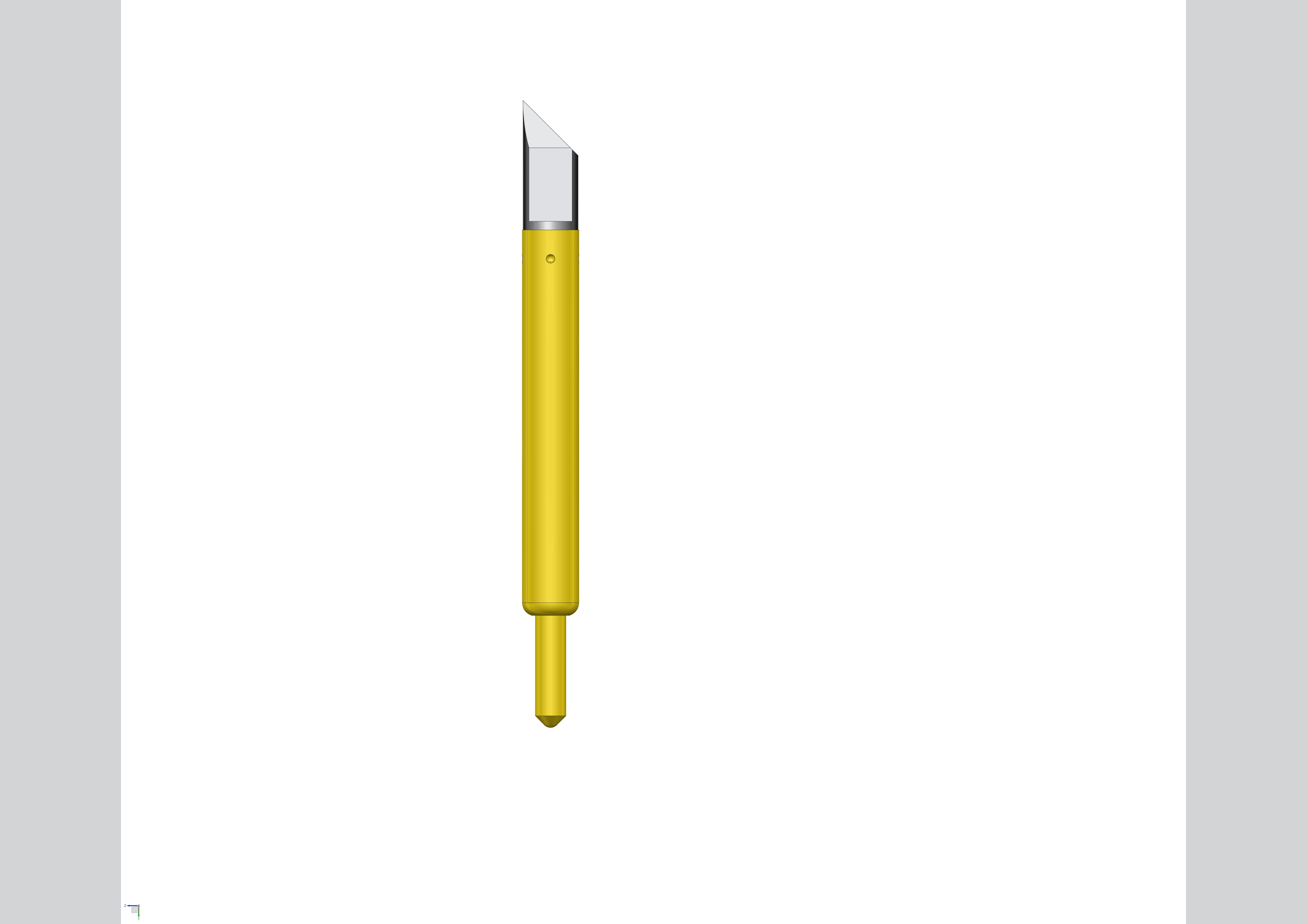

ST033363K020D018035-SK4-S
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.40
FullStroke:
0.50
Recommended Stroke:
0.40
Spring Force:
35G±20%@0.40mm
Impedance:
80mΩ(AVG)
Current:
3.0A Continuous
Bandwidth:
12.5Ghz@-1dB
Induction:
0.53nH
Temperature:
-55℃~155℃
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
SK4-Au plated
Bottom Plunger:
BeCU-Au plated
Spring:
Stainless steel-Au Plated
Barrel:
Phosphor Copper-Au plated
.
