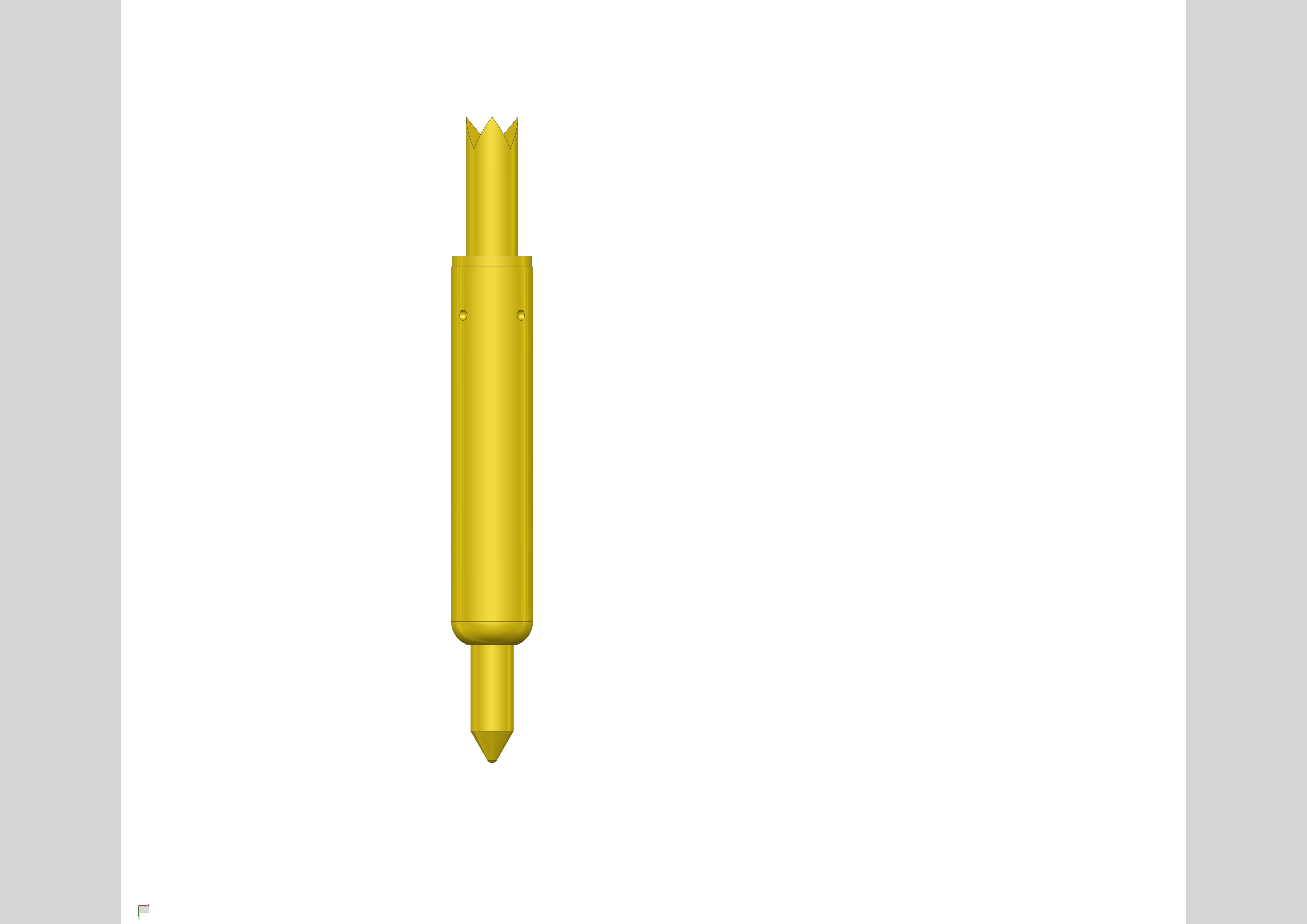

ST038300H024D020024
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.38
FullStroke:
0.50
Recommended Stroke:
0.40
Spring Force:
24G±20%@0.40mm
Impedance:
60mΩ
Temperature:
0~85℃
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
BeCU-Au plated
Bottom Plunger:
BeCU-Au plated
Spring:
SWP+Au plted
Barrel:
Ph+Au plted
.
