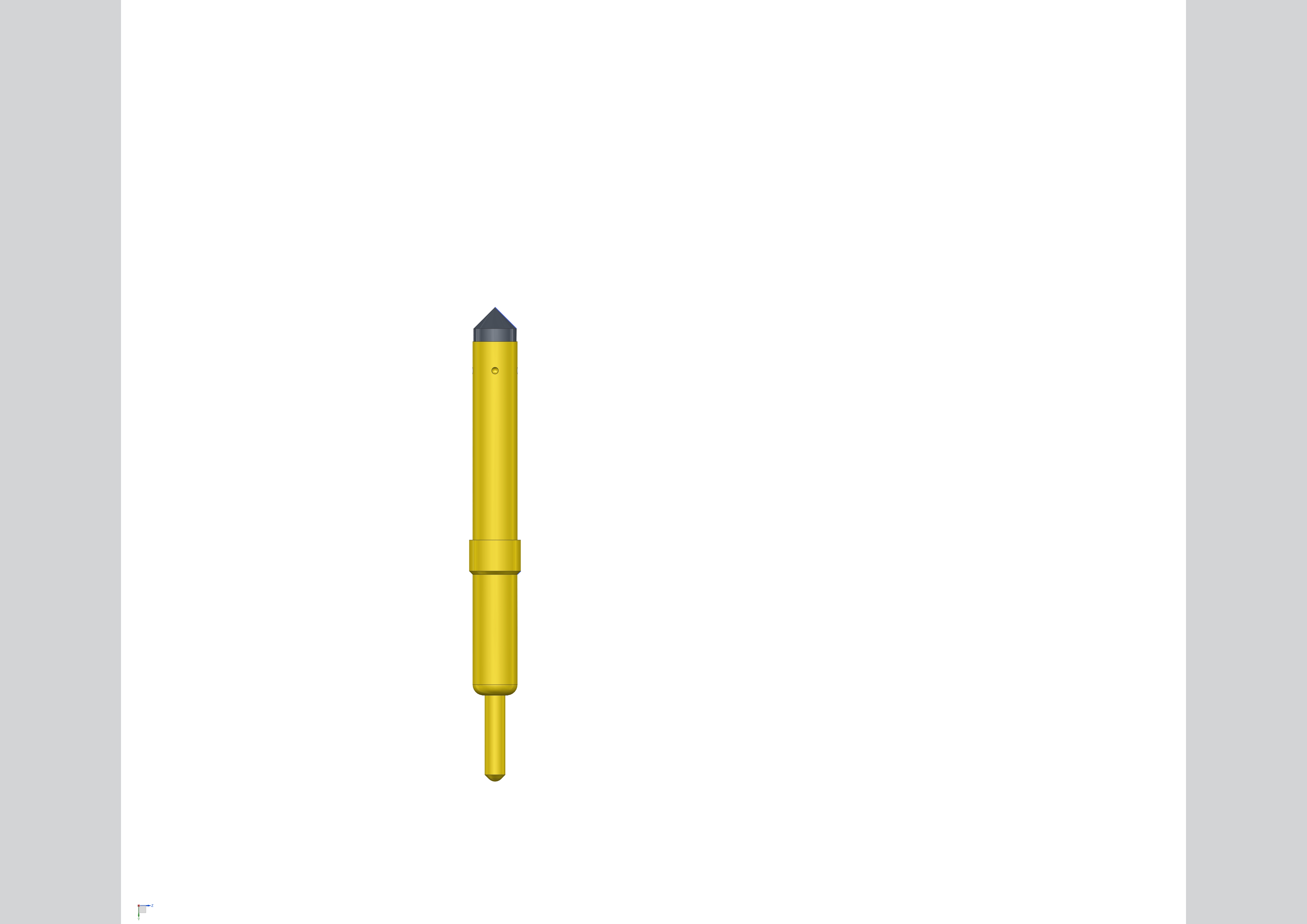

STR026275F025D012025-R
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.40
FullStroke:
0.45
Recommended Stroke:
0.35
Spring Force:
25G±20%@0.35mm
Impedance:
AVG.100mΩ
Current:
1.5A
Bandwidth:
20Ghz@-1dB
Induction:
0.48nH
Temperature:
-45℃~125℃
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.12
Material Spec:
up Gin:
BeCu+Meissner2
Bottom Plunger:
BeCU+Au plated
Spring:
Music wire+Au plated
Barrel:
Phosphor Copper-Au plated
.
