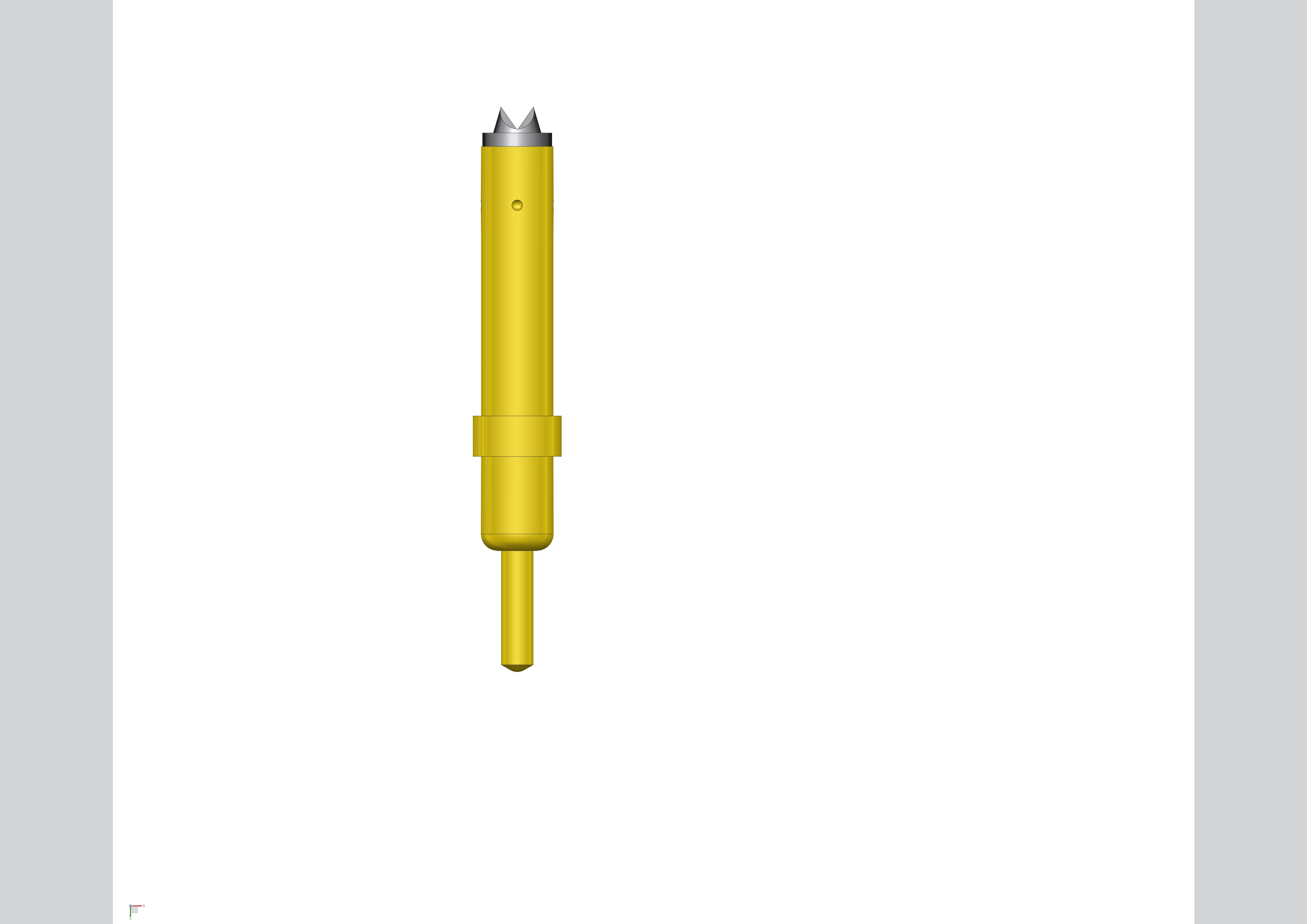

STR027210VD012030-SK4-S
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.50
FullStroke:
0.40
Recommended Stroke:
0.30
Spring Force:
30G±20%@0.30mm
Impedance:
70mΩ(AVG)
Current:
2.0A Continuous
Temperature:
-50℃~150℃
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
SK4-Au plated
Bottom Plunger:
BeCU-Au plated
Spring:
Stainless steel-Au Plated
Barrel:
Phosphor Copper-Au plated
.
