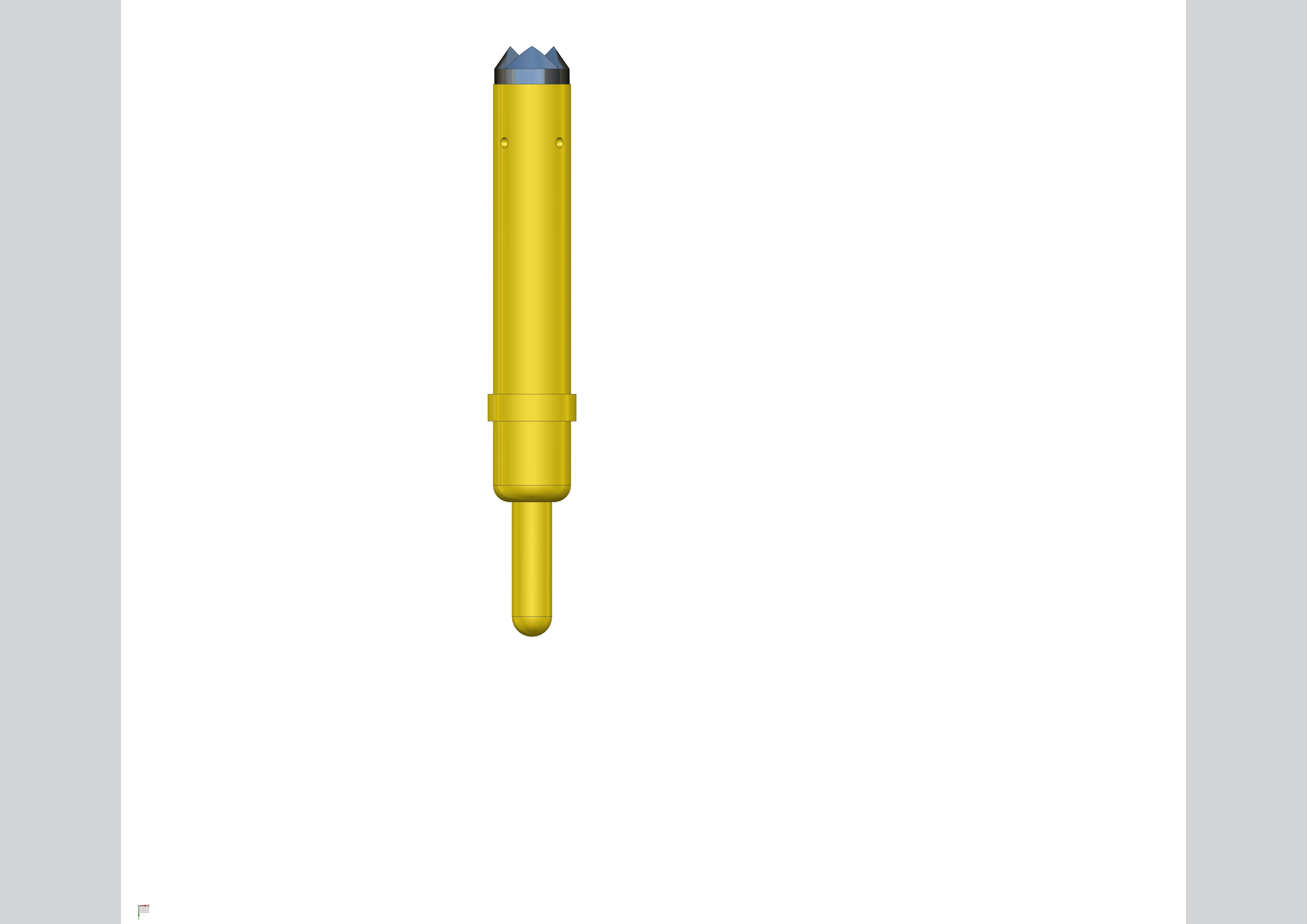

STR029220HC015025-Pd-S
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.50
FullStroke:
0.45
Recommended Stroke:
0.35
Spring Force:
25G±20%@0.35mm
Impedance:
80mΩ(AVG)
Current:
2.0A Continuous
Temperature:
-40℃~125℃
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
Pd Alloy
Bottom Plunger:
BeCU-Au plated
Spring:
Music Wire-Au plated
Barrel:
Phosphor Copper-Au plated
.
